element AddressPoint

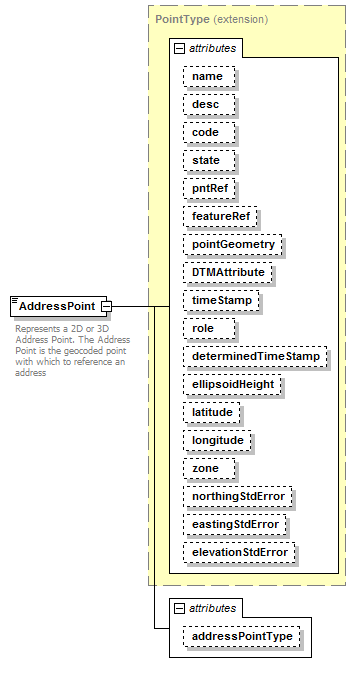

diagram LandXML-1.2Doc_p1.png
namespace http://www.landxml.org/schema/LandXML-1.2
type extension of PointType
properties
content complex
used by
element LocationAddress
facets
minLength 0
maxLength 3
attributes
Name  Type  Use  Default  Fixed  annotation
namexs:string
descxs:string
codexs:string
statestateType
pntRefpointNameRef
featureReffeatureNameRefoptional
pointGeometrypointGeometryType
DTMAttributeDTMAttributeType
timeStampxs:dateTimeoptional
rolesurveyRoleTypeoptional
determinedTimeStampxs:dateTimeoptional
ellipsoidHeightellipsoidHeightTypeoptional
latitudelatLongAngleoptional
longitudelatLongAngleoptional
zonexs:stringoptional
northingStdErrorxs:doubleoptional
eastingStdErrorxs:doubleoptional
elevationStdErrorxs:doubleoptional
addressPointTypeaddressPointTypeType
annotation
documentation
Represents a 2D or 3D Address Point. The Address Point is the geocoded point with which to reference an address
source <xs:element name="AddressPoint">

<xs:annotation>

<xs:documentation>Represents a 2D or 3D Address Point. The Address Point is the geocoded point with which to reference an address</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:simpleContent>

<xs:extension base="PointType">

<xs:attribute name="addressPointType" type="addressPointTypeType"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>
</xs:element>

attribute AddressPoint/@addressPointType
type addressPointTypeType
properties
isRef 0
source <xs:attribute name="addressPointType" type="addressPointTypeType"/>
