element Backsight

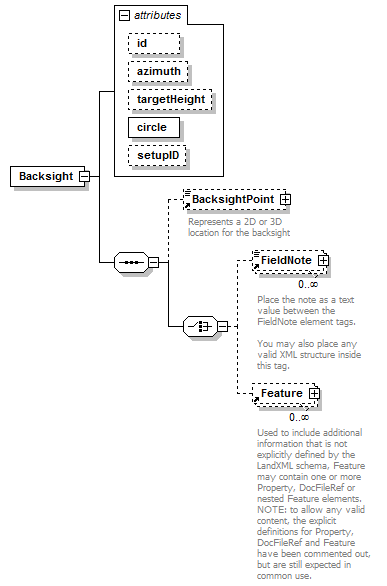

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	BacksightPoint FieldNote Feature
used by	elements  InstrumentSetup LaserSetup ObservationGroup
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          azimuth direction          targetHeight xs:double          circle angle required         setupID xs:IDREF
source	<xs:element name="Backsight">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="BacksightPoint" minOccurs="0"/>       <xs:choice>         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="id" type="xs:ID"/>     <xs:attribute name="azimuth" type="direction"/>     <xs:attribute name="targetHeight" type="xs:double"/>     <xs:attribute name="circle" type="angle" use="required"/>     <xs:attribute name="setupID" type="xs:IDREF"/>   </xs:complexType> </xs:element>

attribute Backsight/@id

type	xs:ID
properties	isRef  0
source	<xs:attribute name="id" type="xs:ID"/>

attribute Backsight/@azimuth

type	direction
properties	isRef  0
source	<xs:attribute name="azimuth" type="direction"/>

attribute Backsight/@targetHeight

type	xs:double
properties	isRef  0
source	<xs:attribute name="targetHeight" type="xs:double"/>

attribute Backsight/@circle

type	angle
properties	isRef  0 use  required
source	<xs:attribute name="circle" type="angle" use="required"/>

attribute Backsight/@setupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="setupID" type="xs:IDREF"/>
