element Breakline

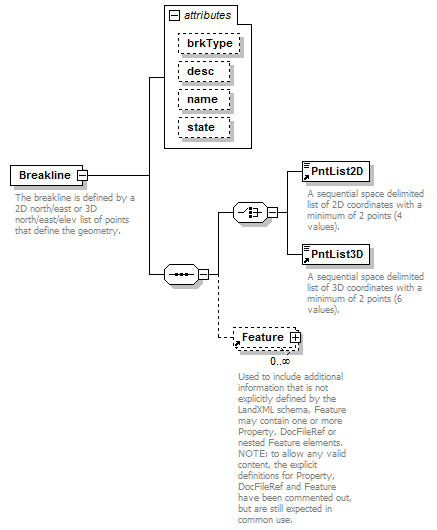

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	PntList2D PntList3D Feature
used by	element  Breaklines
attributes	Name   Type   Use   Default   Fixed   annotation brkType breakLineType          desc xs:string          name xs:string          state stateType
annotation	documentation The breakline is defined by a 2D north/east or 3D north/east/elev list of points that define the geometry. documentation is identified by the "name" attribute.
source	<xs:element name="Breakline">   <xs:annotation>     <xs:documentation>The breakline is defined by a 2D north/east or 3D north/east/elev list of points that define the geometry.</xs:documentation>     <xs:documentation>is identified by the "name" attribute.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice>         <xs:element ref="PntList2D"/>         <xs:element ref="PntList3D"/>         <!-- Here PntList2D represents 2D planametric coordinate pairs expressed as space delimited Northing Easting pairs. -->       </xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="brkType" type="breakLineType"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute Breakline/@brkType

type	breakLineType
properties	isRef  0
facets	enumeration  standard enumeration  wall enumeration  proximity enumeration  nondestructive
source	<xs:attribute name="brkType" type="breakLineType"/>

attribute Breakline/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Breakline/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute Breakline/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
