element Chain

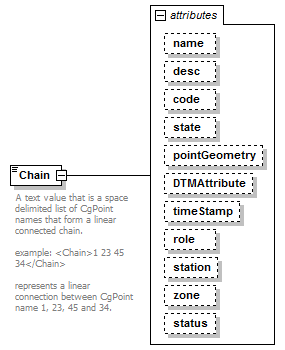

diagram LandXML-1.2Doc_p29.png
namespace http://www.landxml.org/schema/LandXML-1.2
type extension of ChainType
properties
content complex
mixed true
used by
elements CoordGeom SourceData
attributes
Name  Type  Use  Default  Fixed  annotation
namexs:string
descxs:string
codexs:string
statestateType
pointGeometrypointGeometryType
DTMAttributeDTMAttributeType
timeStampxs:dateTimeoptional
rolesurveyRoleTypeoptional
stationstation
zonexs:string
statusobservationStatusType
annotation
documentation
A text value that is a space delimited list of CgPoint names that form a linear connected chain.
example: <Chain>1 23 45 34</Chain>
represents a linear connection between CgPoint name 1, 23, 45 and 34.
source <xs:element name="Chain">
  <xs:annotation>
    <xs:documentation>A text value that is a space delimited list of CgPoint names that form a linear connected chain.
example: <Chain>1 23 45 34</Chain>
represents a linear connection between CgPoint name 1, 23, 45 and 34.
</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:simpleContent>
      <xs:extension base="ChainType">
        <xs:attribute name="name" type="xs:string"/>
        <xs:attribute name="desc" type="xs:string"/>
        <xs:attribute name="code" type="xs:string"/>
        <xs:attribute name="state" type="stateType"/>
        <xs:attribute name="pointGeometry" type="pointGeometryType"/>
        <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>
        <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>
        <xs:attribute name="role" type="surveyRoleType" use="optional"/>
        <xs:attribute name="station" type="station"/>
        <xs:attribute name="zone" type="xs:string"/>
        <xs:attribute name="status" type="observationStatusType"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute Chain/@name
type xs:string
properties
isRef 0
source <xs:attribute name="name" type="xs:string"/>

attribute Chain/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute Chain/@code
type xs:string
properties
isRef 0
source <xs:attribute name="code" type="xs:string"/>

attribute Chain/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute Chain/@pointGeometry
type pointGeometryType
properties
isRef 0
facets
enumeration point
enumeration curve
source <xs:attribute name="pointGeometry" type="pointGeometryType"/>

attribute Chain/@DTMAttribute
type DTMAttributeType
properties
isRef 0
facets
enumeration determinebyfeature
enumeration donotinclude
enumeration spot
enumeration spotandbreak
enumeration void
enumeration drapevoid
enumeration breakvoid
enumeration island
enumeration boundary
enumeration contour
enumeration feature
enumeration ground
enumeration xsection
enumeration user
source <xs:attribute name="DTMAttribute" type="DTMAttributeType"/>

attribute Chain/@timeStamp
type xs:dateTime
properties
isRef 0
use optional
source <xs:attribute name="timeStamp" type="xs:dateTime" use="optional"/>

attribute Chain/@role
type surveyRoleType
properties
isRef 0
use optional
facets
enumeration measured
enumeration to stake out
enumeration staked out
enumeration calculated
enumeration assistance point
enumeration user entered point
enumeration control point
source <xs:attribute name="role" type="surveyRoleType" use="optional"/>

attribute Chain/@station
type station
properties
isRef 0
source <xs:attribute name="station" type="station"/>

attribute Chain/@zone
type xs:string
properties
isRef 0
source <xs:attribute name="zone" type="xs:string"/>

attribute Chain/@status
type observationStatusType
properties
isRef 0
facets
enumeration modified
enumeration deleted
source <xs:attribute name="status" type="observationStatusType"/>
