element Corrections

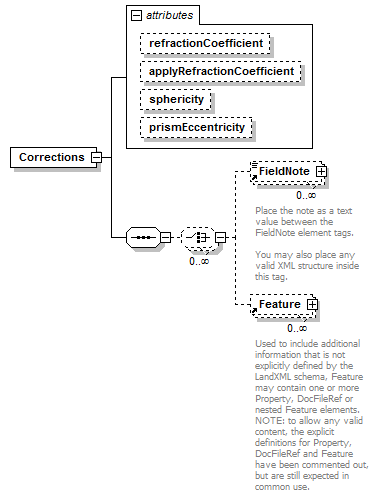

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	FieldNote Feature
used by	element  InstrumentDetails
attributes	Name   Type   Use   Default   Fixed   annotation refractionCoefficient xs:double          applyRefractionCoefficient xs:boolean          sphericity xs:double          prismEccentricity xs:double
source	<xs:element name="Corrections">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="refractionCoefficient" type="xs:double"/>     <xs:attribute name="applyRefractionCoefficient" type="xs:boolean"/>     <xs:attribute name="sphericity" type="xs:double"/>     <xs:attribute name="prismEccentricity" type="xs:double"/>     <!-- if 'true' then atmospheric corrections are to be applied to the measured distances read from the file -->     <!-- if 'true' then sea level corrections are to be applied to the measured distances read from the file -->     <!-- this is for recording the refraction coefficient used in the curvature and refraction correction of zenith angles -->     <!-- if 'true' then RefractionCoefficient should be applied to the measured zenith angles read from the file -->   </xs:complexType> </xs:element>

attribute Corrections/@refractionCoefficient

type	xs:double
properties	isRef  0
source	<xs:attribute name="refractionCoefficient" type="xs:double"/>

attribute Corrections/@applyRefractionCoefficient

type	xs:boolean
properties	isRef  0
source	<xs:attribute name="applyRefractionCoefficient" type="xs:boolean"/>

attribute Corrections/@sphericity

type	xs:double
properties	isRef  0
source	<xs:attribute name="sphericity" type="xs:double"/>

attribute Corrections/@prismEccentricity

type	xs:double
properties	isRef  0
source	<xs:attribute name="prismEccentricity" type="xs:double"/>
