element CrashHistory

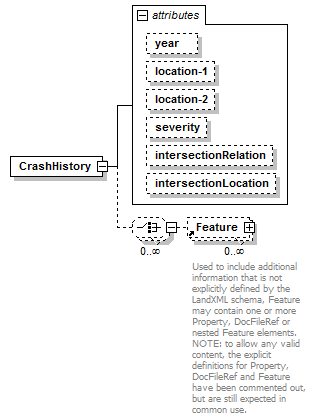

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  CrashData
attributes	Name   Type   Use   Default   Fixed   annotation year xs:date          location-1 station          location-2 station          severity crashSeverityType          intersectionRelation crashIntersectionRelation          intersectionLocation station
source	<xs:element name="CrashHistory">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="year" type="xs:date"/>     <xs:attribute name="location-1" type="station"/>     <xs:attribute name="location-2" type="station"/>     <xs:attribute name="severity" type="crashSeverityType"/>     <xs:attribute name="intersectionRelation" type="crashIntersectionRelation"/>     <xs:attribute name="intersectionLocation" type="station"/>   </xs:complexType> </xs:element>

attribute CrashHistory/@year

type	xs:date
properties	isRef  0
source	<xs:attribute name="year" type="xs:date"/>

attribute CrashHistory/@location-1

type	station
properties	isRef  0
source	<xs:attribute name="location-1" type="station"/>

attribute CrashHistory/@location-2

type	station
properties	isRef  0
source	<xs:attribute name="location-2" type="station"/>

attribute CrashHistory/@severity

type	crashSeverityType
properties	isRef  0
facets	enumeration  fatal enumeration  nonfatal enumeration  propery-damage-only
source	<xs:attribute name="severity" type="crashSeverityType"/>

attribute CrashHistory/@intersectionRelation

type	crashIntersectionRelation
properties	isRef  0
facets	enumeration  unknown enumeration  non-intersection-related enumeration  intersection-related
source	<xs:attribute name="intersectionRelation" type="crashIntersectionRelation"/>

attribute CrashHistory/@intersectionLocation

type	station
properties	isRef  0
source	<xs:attribute name="intersectionLocation" type="station"/>
