element DesignSpeed

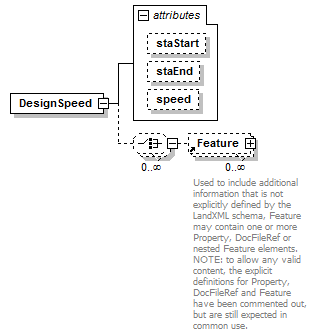

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Speeds
attributes	Name   Type   Use   Default   Fixed   annotation staStart station          staEnd station          speed speed
source	<xs:element name="DesignSpeed">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="staStart" type="station"/>     <xs:attribute name="staEnd" type="station"/>     <xs:attribute name="speed" type="speed"/>   </xs:complexType> </xs:element>

attribute DesignSpeed/@staStart

type	station
properties	isRef  0
source	<xs:attribute name="staStart" type="station"/>

attribute DesignSpeed/@staEnd

type	station
properties	isRef  0
source	<xs:attribute name="staEnd" type="station"/>

attribute DesignSpeed/@speed

type	speed
properties	isRef  0
source	<xs:attribute name="speed" type="speed"/>
