element DrivewayDensity

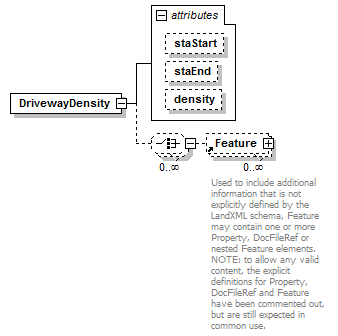

diagram LandXML-1.2Doc_p66.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Roadside
attributes
Name  Type  Use  Default  Fixed  annotation
staStartstation
staEndstation
densityxs:int
source <xs:element name="DrivewayDensity">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="density" type="xs:int"/>

<!-- Driveway Density - Unit of measure: integer. The driveway density for both sides of the roadway combined. The unit of measure for this item is driveways/kilometer (driveways/mile). -->

</xs:complexType>
</xs:element>

attribute DrivewayDensity/@staStart
type station
properties
isRef 0
source <xs:attribute name="staStart" type="station"/>

attribute DrivewayDensity/@staEnd
type station
properties
isRef 0
source <xs:attribute name="staEnd" type="station"/>

attribute DrivewayDensity/@density
type xs:int
properties
isRef 0
source <xs:attribute name="density" type="xs:int"/>
