element FeatureDictionary

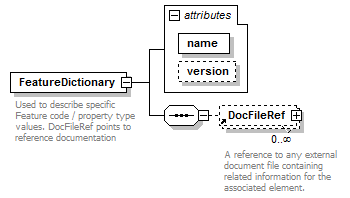

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	DocFileRef
used by	element  LandXML
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         version xs:string optional
annotation	documentation Used to describe specific Feature code / property type values. DocFileRef points to reference documentation documentation Each Property element defines one piece of data.
source	<xs:element name="FeatureDictionary">   <xs:annotation>     <xs:documentation>Used to describe specific Feature code / property type values. DocFileRef points to reference documentation</xs:documentation>     <xs:documentation>Each Property element defines one piece of data.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="DocFileRef" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="version" type="xs:string" use="optional"/>   </xs:complexType> </xs:element>

attribute FeatureDictionary/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute FeatureDictionary/@version

type	xs:string
properties	isRef  0 use  optional
source	<xs:attribute name="version" type="xs:string" use="optional"/>
