element GradeSurface

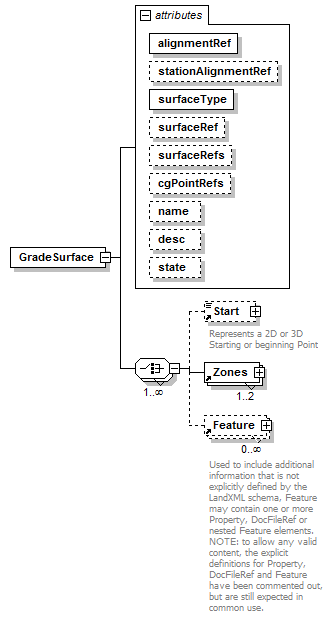

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Start Zones Feature
used by	element  GradeModel
attributes	Name   Type   Use   Default   Fixed   annotation alignmentRef alignmentNameRef required         stationAlignmentRef alignmentNameRef          surfaceType zoneSurfaceType required         surfaceRef surfaceNameRef          surfaceRefs surfaceNameRefs          cgPointRefs pointNameRefs          name xs:string          desc xs:string          state stateType
source	<xs:element name="GradeSurface">   <xs:complexType>     <xs:choice maxOccurs="unbounded">       <xs:element ref="Start" minOccurs="0"/>       <xs:element ref="Zones" maxOccurs="2"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="alignmentRef" type="alignmentNameRef" use="required"/>     <xs:attribute name="stationAlignmentRef" type="alignmentNameRef"/>     <xs:attribute name="surfaceType" type="zoneSurfaceType" use="required"/>     <xs:attribute name="surfaceRef" type="surfaceNameRef"/>     <xs:attribute name="surfaceRefs" type="surfaceNameRefs"/>     <xs:attribute name="cgPointRefs" type="pointNameRefs"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute GradeSurface/@alignmentRef

type	alignmentNameRef
properties	isRef  0 use  required
source	<xs:attribute name="alignmentRef" type="alignmentNameRef" use="required"/>

attribute GradeSurface/@stationAlignmentRef

type	alignmentNameRef
properties	isRef  0
source	<xs:attribute name="stationAlignmentRef" type="alignmentNameRef"/>

attribute GradeSurface/@surfaceType

type	zoneSurfaceType
properties	isRef  0 use  required
facets	enumeration  finalSurface enumeration  subgrade
source	<xs:attribute name="surfaceType" type="zoneSurfaceType" use="required"/>

attribute GradeSurface/@surfaceRef

type	surfaceNameRef
properties	isRef  0
source	<xs:attribute name="surfaceRef" type="surfaceNameRef"/>

attribute GradeSurface/@surfaceRefs

type	surfaceNameRefs
properties	isRef  0
source	<xs:attribute name="surfaceRefs" type="surfaceNameRefs"/>

attribute GradeSurface/@cgPointRefs

type	pointNameRefs
properties	isRef  0
source	<xs:attribute name="cgPointRefs" type="pointNameRefs"/>

attribute GradeSurface/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute GradeSurface/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute GradeSurface/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
