element Imperial

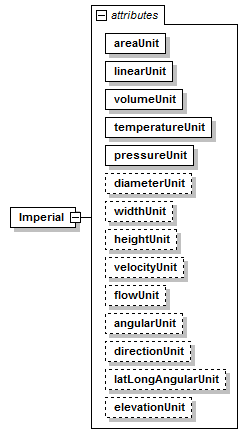

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
used by	element  Units
attributes	Name   Type   Use   Default   Fixed   annotation areaUnit impArea required         linearUnit impLinear required         volumeUnit impVolume required         temperatureUnit impTemperature required         pressureUnit impPressure required         diameterUnit impDiameter          widthUnit impWidth          heightUnit impHeight          velocityUnit impVelocity          flowUnit impFlow          angularUnit angularType    radians      directionUnit angularType    radians      latLongAngularUnit latLongAngularType    decimal degrees      elevationUnit elevationType    meter
source	<xs:element name="Imperial">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:attribute name="areaUnit" type="impArea" use="required"/>     <xs:attribute name="linearUnit" type="impLinear" use="required"/>     <xs:attribute name="volumeUnit" type="impVolume" use="required"/>     <xs:attribute name="temperatureUnit" type="impTemperature" use="required"/>     <xs:attribute name="pressureUnit" type="impPressure" use="required"/>     <xs:attribute name="diameterUnit" type="impDiameter"/>     <xs:attribute name="widthUnit" type="impWidth"/>     <xs:attribute name="heightUnit" type="impHeight"/>     <xs:attribute name="velocityUnit" type="impVelocity"/>     <xs:attribute name="flowUnit" type="impFlow"/>     <xs:attribute name="angularUnit" type="angularType" default="radians"/>     <xs:attribute name="directionUnit" type="angularType" default="radians"/>     <xs:attribute name="latLongAngularUnit" type="latLongAngularType" default="decimal degrees"/>     <xs:attribute name="elevationUnit" type="elevationType" default="meter"/>   </xs:complexType> </xs:element>

attribute Imperial/@areaUnit

type	impArea
properties	isRef  0 use  required
facets	enumeration  acre enumeration  squareFoot enumeration  squareInch enumeration  squareMiles
source	<xs:attribute name="areaUnit" type="impArea" use="required"/>

attribute Imperial/@linearUnit

type	impLinear
properties	isRef  0 use  required
facets	enumeration  foot enumeration  USSurveyFoot enumeration  inch enumeration  mile
source	<xs:attribute name="linearUnit" type="impLinear" use="required"/>

attribute Imperial/@volumeUnit

type	impVolume
properties	isRef  0 use  required
facets	enumeration  US_gallon enumeration  IMP_gallon enumeration  cubicInch enumeration  cubicFeet enumeration  cubicYard enumeration  acreFeet
source	<xs:attribute name="volumeUnit" type="impVolume" use="required"/>

attribute Imperial/@temperatureUnit

type	impTemperature
properties	isRef  0 use  required
facets	enumeration  fahrenheit enumeration  kelvin
source	<xs:attribute name="temperatureUnit" type="impTemperature" use="required"/>

attribute Imperial/@pressureUnit

type	impPressure
properties	isRef  0 use  required
facets	enumeration  inchHG enumeration  inHG
source	<xs:attribute name="pressureUnit" type="impPressure" use="required"/>

attribute Imperial/@diameterUnit

type	impDiameter
properties	isRef  0
facets	enumeration  foot enumeration  USSurveyFoot enumeration  inch
source	<xs:attribute name="diameterUnit" type="impDiameter"/>

attribute Imperial/@widthUnit

type	impWidth
properties	isRef  0
facets	enumeration  foot enumeration  USSurveyFoot enumeration  inch
source	<xs:attribute name="widthUnit" type="impWidth"/>

attribute Imperial/@heightUnit

type	impHeight
properties	isRef  0
facets	enumeration  foot enumeration  USSurveyFoot enumeration  inch
source	<xs:attribute name="heightUnit" type="impHeight"/>

attribute Imperial/@velocityUnit

type	impVelocity
properties	isRef  0
facets	enumeration  feetPerSecond enumeration  milesPerHour
source	<xs:attribute name="velocityUnit" type="impVelocity"/>

attribute Imperial/@flowUnit

type	impFlow
properties	isRef  0
facets	enumeration  US_gallonPerDay enumeration  IMP_gallonPerDay enumeration  cubicFeetDay enumeration  US_gallonPerMinute enumeration  IMP_gallonPerMinute enumeration  acreFeetDay enumeration  cubicFeetSecond
source	<xs:attribute name="flowUnit" type="impFlow"/>

attribute Imperial/@angularUnit

type	angularType
properties	isRef  0 default  radians
facets	enumeration  radians enumeration  grads enumeration  decimal degrees enumeration  decimal dd.mm.ss
source	<xs:attribute name="angularUnit" type="angularType" default="radians"/>

attribute Imperial/@directionUnit

type	angularType
properties	isRef  0 default  radians
facets	enumeration  radians enumeration  grads enumeration  decimal degrees enumeration  decimal dd.mm.ss
source	<xs:attribute name="directionUnit" type="angularType" default="radians"/>

attribute Imperial/@latLongAngularUnit

type	latLongAngularType
properties	isRef  0 default  decimal degrees
facets	enumeration  radians enumeration  grads enumeration  decimal degrees enumeration  decimal dd.mm.ss
source	<xs:attribute name="latLongAngularUnit" type="latLongAngularType" default="decimal degrees"/>

attribute Imperial/@elevationUnit

type	elevationType
properties	isRef  0 default  meter
facets	enumeration  meter enumeration  kilometer enumeration  feet enumeration  miles
source	<xs:attribute name="elevationUnit" type="elevationType" default="meter"/>
