element LaserDetails

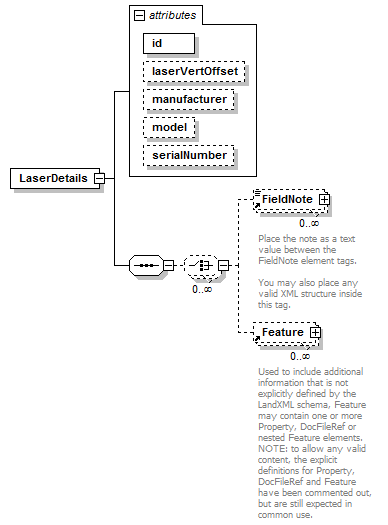

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	FieldNote Feature
used by	element  Equipment
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID required         laserVertOffset xs:double          manufacturer xs:string          model xs:string          serialNumber xs:string
source	<xs:element name="LaserDetails">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="id" type="xs:ID" use="required"/>     <xs:attribute name="laserVertOffset" type="xs:double"/>     <xs:attribute name="manufacturer" type="xs:string"/>     <xs:attribute name="model" type="xs:string"/>     <xs:attribute name="serialNumber" type="xs:string"/>   </xs:complexType> </xs:element>

attribute LaserDetails/@id

type	xs:ID
properties	isRef  0 use  required
source	<xs:attribute name="id" type="xs:ID" use="required"/>

attribute LaserDetails/@laserVertOffset

type	xs:double
properties	isRef  0
source	<xs:attribute name="laserVertOffset" type="xs:double"/>

attribute LaserDetails/@manufacturer

type	xs:string
properties	isRef  0
source	<xs:attribute name="manufacturer" type="xs:string"/>

attribute LaserDetails/@model

type	xs:string
properties	isRef  0
source	<xs:attribute name="model" type="xs:string"/>

attribute LaserDetails/@serialNumber

type	xs:string
properties	isRef  0
source	<xs:attribute name="serialNumber" type="xs:string"/>
