element Metric

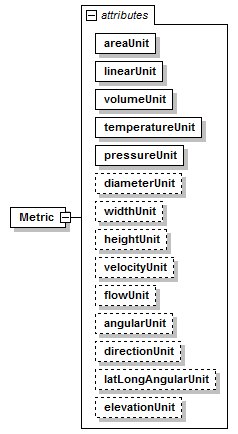

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
used by	element  Units
attributes	Name   Type   Use   Default   Fixed   annotation areaUnit metArea required         linearUnit metLinear required         volumeUnit metVolume required         temperatureUnit metTemperature required         pressureUnit metPressure required         diameterUnit metDiameter          widthUnit metWidth          heightUnit metHeight          velocityUnit metVelocity          flowUnit metFlow          angularUnit angularType    radians      directionUnit angularType    radians      latLongAngularUnit latLongAngularType    decimal degrees      elevationUnit elevationType    meter
source	<xs:element name="Metric">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:attribute name="areaUnit" type="metArea" use="required"/>     <xs:attribute name="linearUnit" type="metLinear" use="required"/>     <xs:attribute name="volumeUnit" type="metVolume" use="required"/>     <xs:attribute name="temperatureUnit" type="metTemperature" use="required"/>     <xs:attribute name="pressureUnit" type="metPressure" use="required"/>     <xs:attribute name="diameterUnit" type="metDiameter"/>     <xs:attribute name="widthUnit" type="metWidth"/>     <xs:attribute name="heightUnit" type="metHeight"/>     <xs:attribute name="velocityUnit" type="metVelocity"/>     <xs:attribute name="flowUnit" type="metFlow"/>     <xs:attribute name="angularUnit" type="angularType" default="radians"/>     <xs:attribute name="directionUnit" type="angularType" default="radians"/>     <xs:attribute name="latLongAngularUnit" type="latLongAngularType" default="decimal degrees"/>     <xs:attribute name="elevationUnit" type="elevationType" default="meter"/>     <!-- FAA Additions start -->     <!-- FAA Additions end -->   </xs:complexType> </xs:element>

attribute Metric/@areaUnit

type	metArea
properties	isRef  0 use  required
facets	enumeration  hectare enumeration  squareMeter enumeration  squareMillimeter enumeration  squareCentimeter
source	<xs:attribute name="areaUnit" type="metArea" use="required"/>

attribute Metric/@linearUnit

type	metLinear
properties	isRef  0 use  required
facets	enumeration  millimeter enumeration  centimeter enumeration  meter enumeration  kilometer
source	<xs:attribute name="linearUnit" type="metLinear" use="required"/>

attribute Metric/@volumeUnit

type	metVolume
properties	isRef  0 use  required
facets	enumeration  cubicMeter enumeration  liter enumeration  hectareMeter
source	<xs:attribute name="volumeUnit" type="metVolume" use="required"/>

attribute Metric/@temperatureUnit

type	metTemperature
properties	isRef  0 use  required
facets	enumeration  celsius enumeration  kelvin
source	<xs:attribute name="temperatureUnit" type="metTemperature" use="required"/>

attribute Metric/@pressureUnit

type	metPressure
properties	isRef  0 use  required
facets	enumeration  HPA enumeration  milliBars enumeration  mmHG enumeration  millimeterHG
source	<xs:attribute name="pressureUnit" type="metPressure" use="required"/>

attribute Metric/@diameterUnit

type	metDiameter
properties	isRef  0
facets	enumeration  millimeter enumeration  centimeter enumeration  meter enumeration  kilometer
source	<xs:attribute name="diameterUnit" type="metDiameter"/>

attribute Metric/@widthUnit

type	metWidth
properties	isRef  0
facets	enumeration  millimeter enumeration  centimeter enumeration  meter enumeration  kilometer
source	<xs:attribute name="widthUnit" type="metWidth"/>

attribute Metric/@heightUnit

type	metHeight
properties	isRef  0
facets	enumeration  millimeter enumeration  centimeter enumeration  meter enumeration  kilometer
source	<xs:attribute name="heightUnit" type="metHeight"/>

attribute Metric/@velocityUnit

type	metVelocity
properties	isRef  0
facets	enumeration  metersPerSecond enumeration  kilometersPerHour
source	<xs:attribute name="velocityUnit" type="metVelocity"/>

attribute Metric/@flowUnit

type	metFlow
properties	isRef  0
facets	enumeration  cubicMeterSecond enumeration  literPerSecond enumeration  literPerMinute
source	<xs:attribute name="flowUnit" type="metFlow"/>

attribute Metric/@angularUnit

type	angularType
properties	isRef  0 default  radians
facets	enumeration  radians enumeration  grads enumeration  decimal degrees enumeration  decimal dd.mm.ss
source	<xs:attribute name="angularUnit" type="angularType" default="radians"/>

attribute Metric/@directionUnit

type	angularType
properties	isRef  0 default  radians
facets	enumeration  radians enumeration  grads enumeration  decimal degrees enumeration  decimal dd.mm.ss
source	<xs:attribute name="directionUnit" type="angularType" default="radians"/>

attribute Metric/@latLongAngularUnit

type	latLongAngularType
properties	isRef  0 default  decimal degrees
facets	enumeration  radians enumeration  grads enumeration  decimal degrees enumeration  decimal dd.mm.ss
source	<xs:attribute name="latLongAngularUnit" type="latLongAngularType" default="decimal degrees"/>

attribute Metric/@elevationUnit

type	elevationType
properties	isRef  0 default  meter
facets	enumeration  meter enumeration  kilometer enumeration  feet enumeration  miles
source	<xs:attribute name="elevationUnit" type="elevationType" default="meter"/>
