element OffsetLane

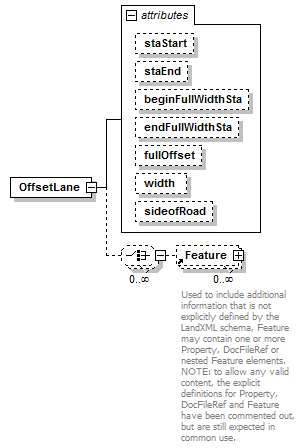

diagram LandXML-1.2Doc_p115.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Lanes
attributes
Name  Type  Use  Default  Fixed  annotation
staStartstation
staEndstation
beginFullWidthStastation
endFullWidthStastation
fullOffsetoffsetDistance
widthxs:double
sideofRoadsideofRoadType
source <xs:element name="OffsetLane">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="beginFullWidthSta" type="station"/>

<xs:attribute name="endFullWidthSta" type="station"/>

<xs:attribute name="fullOffset" type="offsetDistance"/>

<xs:attribute name="width" type="xs:double"/>

<xs:attribute name="sideofRoad" type="sideofRoadType"/>

</xs:complexType>
</xs:element>

attribute OffsetLane/@staStart
type station
properties
isRef 0
source <xs:attribute name="staStart" type="station"/>

attribute OffsetLane/@staEnd
type station
properties
isRef 0
source <xs:attribute name="staEnd" type="station"/>

attribute OffsetLane/@beginFullWidthSta
type station
properties
isRef 0
source <xs:attribute name="beginFullWidthSta" type="station"/>

attribute OffsetLane/@endFullWidthSta
type station
properties
isRef 0
source <xs:attribute name="endFullWidthSta" type="station"/>

attribute OffsetLane/@fullOffset
type offsetDistance
properties
isRef 0
source <xs:attribute name="fullOffset" type="offsetDistance"/>

attribute OffsetLane/@width
type xs:double
properties
isRef 0
source <xs:attribute name="width" type="xs:double"/>

attribute OffsetLane/@sideofRoad
type sideofRoadType
properties
isRef 0
facets
enumeration right
enumeration left
enumeration both
source <xs:attribute name="sideofRoad" type="sideofRoadType"/>
