element Outlet

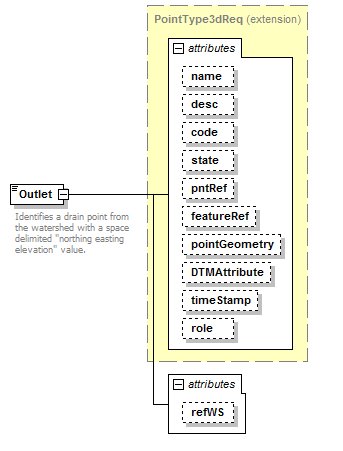

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
type	extension of PointType3dReq
properties	content  complex mixed  true
used by	element  Watershed
facets	minLength  0 maxLength  3
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          desc xs:string          code xs:string          state stateType          pntRef pointNameRef          featureRef featureNameRef optional         pointGeometry pointGeometryType          DTMAttribute DTMAttributeType          timeStamp xs:dateTime optional         role surveyRoleType optional         refWS waterShedNameRef
annotation	documentation Identifies a drain point from the watershed with a space delimited "northing easting elevation" value. documentation If it drains to another known watershed, then the name of that watershed is identified by the "refWs" attribute.
source	<xs:element name="Outlet">   <xs:annotation>     <xs:documentation>Identifies a drain point from the watershed with a space delimited "northing easting elevation" value.</xs:documentation>     <xs:documentation>If it drains to another known watershed, then the name of that watershed is identified by the "refWs" attribute.</xs:documentation>   </xs:annotation>   <xs:complexType mixed="true">     <xs:simpleContent>       <xs:extension base="PointType3dReq">         <xs:attribute name="refWS" type="waterShedNameRef"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute Outlet/@refWS

type	waterShedNameRef
properties	isRef  0
source	<xs:attribute name="refWS" type="waterShedNameRef"/>
