element PI

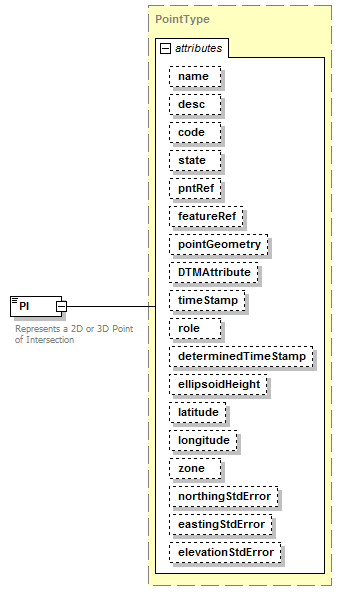

diagram LandXML-1.2Doc_p127.png
namespace http://www.landxml.org/schema/LandXML-1.2
type PointType
properties
content complex
mixed true
used by
elements AlignPI Curve Spiral
facets
minLength 0
maxLength 3
attributes
Name  Type  Use  Default  Fixed  annotation
namexs:string
descxs:string
codexs:string
statestateType
pntRefpointNameRef
featureReffeatureNameRefoptional
pointGeometrypointGeometryType
DTMAttributeDTMAttributeType
timeStampxs:dateTimeoptional
rolesurveyRoleTypeoptional
determinedTimeStampxs:dateTimeoptional
ellipsoidHeightellipsoidHeightTypeoptional
latitudelatLongAngleoptional
longitudelatLongAngleoptional
zonexs:stringoptional
northingStdErrorxs:doubleoptional
eastingStdErrorxs:doubleoptional
elevationStdErrorxs:doubleoptional
annotation
documentation
Represents a 2D or 3D Point of Intersection
documentation
Defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.
source <xs:element name="PI" type="PointType">

<xs:annotation>

<xs:documentation>Represents a 2D or 3D Point of Intersection</xs:documentation>

<xs:documentation>Defined by either a coordinate text value ("north east" or "north east elev") or a CgPoint number reference "pntRef" attribute.</xs:documentation>

</xs:annotation>
</xs:element>
