element PipeFlow

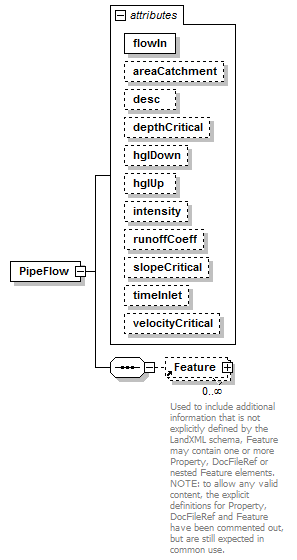

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Pipe
attributes	Name   Type   Use   Default   Fixed   annotation flowIn xs:double required         areaCatchment xs:double          desc xs:string          depthCritical xs:double          hglDown xs:double          hglUp xs:double          intensity xs:double          runoffCoeff xs:double          slopeCritical xs:double          timeInlet xs:double          velocityCritical xs:double
source	<xs:element name="PipeFlow">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="flowIn" type="xs:double" use="required"/>     <xs:attribute name="areaCatchment" type="xs:double"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="depthCritical" type="xs:double"/>     <xs:attribute name="hglDown" type="xs:double"/>     <xs:attribute name="hglUp" type="xs:double"/>     <xs:attribute name="intensity" type="xs:double"/>     <xs:attribute name="runoffCoeff" type="xs:double"/>     <xs:attribute name="slopeCritical" type="xs:double"/>     <xs:attribute name="timeInlet" type="xs:double"/>     <xs:attribute name="velocityCritical" type="xs:double"/>   </xs:complexType> </xs:element>

attribute PipeFlow/@flowIn

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="flowIn" type="xs:double" use="required"/>

attribute PipeFlow/@areaCatchment

type	xs:double
properties	isRef  0
source	<xs:attribute name="areaCatchment" type="xs:double"/>

attribute PipeFlow/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute PipeFlow/@depthCritical

type	xs:double
properties	isRef  0
source	<xs:attribute name="depthCritical" type="xs:double"/>

attribute PipeFlow/@hglDown

type	xs:double
properties	isRef  0
source	<xs:attribute name="hglDown" type="xs:double"/>

attribute PipeFlow/@hglUp

type	xs:double
properties	isRef  0
source	<xs:attribute name="hglUp" type="xs:double"/>

attribute PipeFlow/@intensity

type	xs:double
properties	isRef  0
source	<xs:attribute name="intensity" type="xs:double"/>

attribute PipeFlow/@runoffCoeff

type	xs:double
properties	isRef  0
source	<xs:attribute name="runoffCoeff" type="xs:double"/>

attribute PipeFlow/@slopeCritical

type	xs:double
properties	isRef  0
source	<xs:attribute name="slopeCritical" type="xs:double"/>

attribute PipeFlow/@timeInlet

type	xs:double
properties	isRef  0
source	<xs:attribute name="timeInlet" type="xs:double"/>

attribute PipeFlow/@velocityCritical

type	xs:double
properties	isRef  0
source	<xs:attribute name="velocityCritical" type="xs:double"/>
