element PipeNetwork

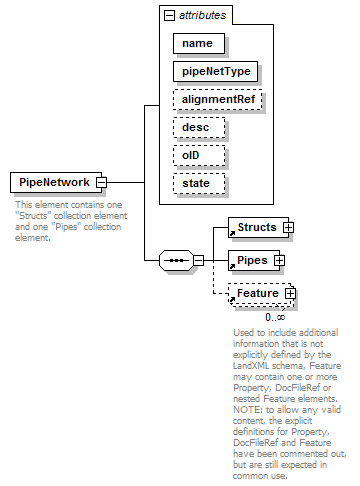

diagram LandXML-1.2Doc_p130.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Structs Pipes Feature
used by
element PipeNetworks
attributes
Name  Type  Use  Default  Fixed  annotation
namexs:stringrequired
pipeNetTypepipeNetworkTyperequired
alignmentRefalignmentNameRef
descxs:string
oIDxs:string
statestateType
annotation
documentation
This element contains one "Structs" collection element and one "Pipes" collection element.
documentation
keyRef is a Schema validation mechanism that ensures that the "structRef" and "pipeRef" attribute values have corresponding Pipe and Struct "name" values"
source <xs:element name="PipeNetwork">

<xs:annotation>

<xs:documentation>This element contains one "Structs" collection element and one "Pipes" collection element.</xs:documentation>

<xs:documentation>keyRef is a Schema validation mechanism that ensures that the "structRef" and "pipeRef" attribute values have corresponding Pipe and Struct "name" values"</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="Structs"/>

<xs:element ref="Pipes"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="name" type="xs:string" use="required"/>

<xs:attribute name="pipeNetType" type="pipeNetworkType" use="required"/>

<xs:attribute name="alignmentRef" type="alignmentNameRef"/>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="oID" type="xs:string"/>

<xs:attribute name="state" type="stateType"/>

</xs:complexType>
</xs:element>

attribute PipeNetwork/@name
type xs:string
properties
isRef 0
use required
source <xs:attribute name="name" type="xs:string" use="required"/>

attribute PipeNetwork/@pipeNetType
type pipeNetworkType
properties
isRef 0
use required
facets
enumeration sanitary
enumeration storm
enumeration water
enumeration other
source <xs:attribute name="pipeNetType" type="pipeNetworkType" use="required"/>

attribute PipeNetwork/@alignmentRef
type alignmentNameRef
properties
isRef 0
source <xs:attribute name="alignmentRef" type="alignmentNameRef"/>

attribute PipeNetwork/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute PipeNetwork/@oID
type xs:string
properties
isRef 0
source <xs:attribute name="oID" type="xs:string"/>

attribute PipeNetwork/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>
