element PlanFeatures

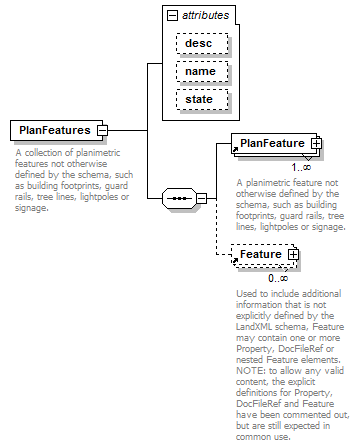

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	PlanFeature Feature
used by	element  LandXML
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string          state stateType
annotation	documentation A collection of planimetric features not otherwise defined by the schema, such as building footprints, guard rails, tree lines, lightpoles or signage. documentation Typically a PlanFeatures element will contain a collection of similar items.
source	<xs:element name="PlanFeatures">   <xs:annotation>     <xs:documentation>A collection of planimetric features not otherwise defined by the schema, such as building footprints, guard rails, tree lines, lightpoles or signage.</xs:documentation>     <xs:documentation>Typically a PlanFeatures element will contain a collection of similar items.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="PlanFeature" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute PlanFeatures/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute PlanFeatures/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute PlanFeatures/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
