element PointResults

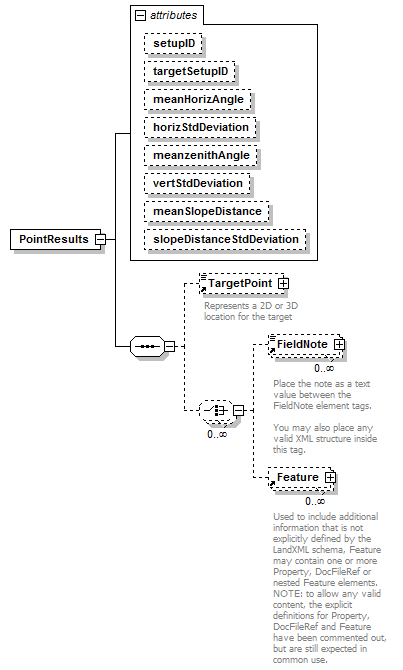

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	TargetPoint FieldNote Feature
used by	element  ControlChecks
attributes	Name   Type   Use   Default   Fixed   annotation setupID xs:IDREF          targetSetupID xs:IDREF          meanHorizAngle xs:double          horizStdDeviation xs:double          meanzenithAngle zenithAngle          vertStdDeviation xs:double          meanSlopeDistance xs:double          slopeDistanceStdDeviation xs:double
source	<xs:element name="PointResults">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="TargetPoint" minOccurs="0"/>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="setupID" type="xs:IDREF"/>     <xs:attribute name="targetSetupID" type="xs:IDREF"/>     <xs:attribute name="meanHorizAngle" type="xs:double"/>     <xs:attribute name="horizStdDeviation" type="xs:double"/>     <xs:attribute name="meanzenithAngle" type="zenithAngle"/>     <xs:attribute name="vertStdDeviation" type="xs:double"/>     <xs:attribute name="meanSlopeDistance" type="xs:double"/>     <xs:attribute name="slopeDistanceStdDeviation" type="xs:double"/>   </xs:complexType> </xs:element>

attribute PointResults/@setupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="setupID" type="xs:IDREF"/>

attribute PointResults/@targetSetupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="targetSetupID" type="xs:IDREF"/>

attribute PointResults/@meanHorizAngle

type	xs:double
properties	isRef  0
source	<xs:attribute name="meanHorizAngle" type="xs:double"/>

attribute PointResults/@horizStdDeviation

type	xs:double
properties	isRef  0
source	<xs:attribute name="horizStdDeviation" type="xs:double"/>

attribute PointResults/@meanzenithAngle

type	zenithAngle
properties	isRef  0
source	<xs:attribute name="meanzenithAngle" type="zenithAngle"/>

attribute PointResults/@vertStdDeviation

type	xs:double
properties	isRef  0
source	<xs:attribute name="vertStdDeviation" type="xs:double"/>

attribute PointResults/@meanSlopeDistance

type	xs:double
properties	isRef  0
source	<xs:attribute name="meanSlopeDistance" type="xs:double"/>

attribute PointResults/@slopeDistanceStdDeviation

type	xs:double
properties	isRef  0
source	<xs:attribute name="slopeDistanceStdDeviation" type="xs:double"/>
