element RedHorizontalPosition

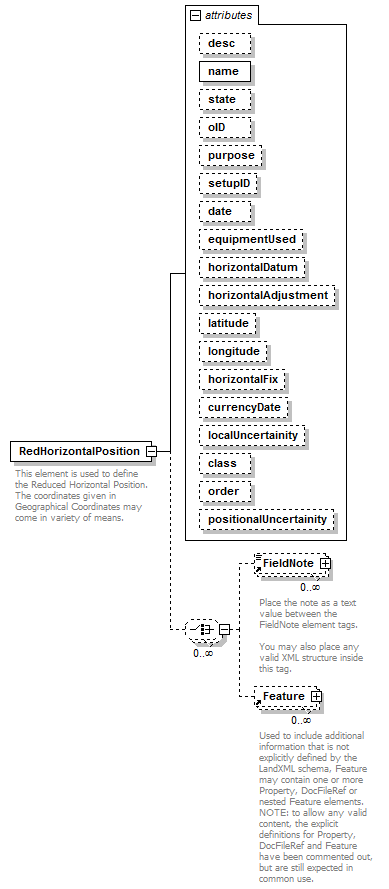

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	FieldNote Feature
used by	element  ObservationGroup
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string required         state xs:string          oID xs:string          purpose purposeType          setupID xs:IDREF          date xs:date          equipmentUsed equipmentType          horizontalDatum xs:string          horizontalAdjustment xs:string          latitude xs:string          longitude xs:string          horizontalFix xs:string          currencyDate xs:string          localUncertainity xs:double          class xs:string          order xs:string          positionalUncertainity xs:double
annotation	documentation This element is used to define the Reduced Horizontal Position. The coordinates given in Geographical Coordinates may come in variety of means.
source	<xs:element name="RedHorizontalPosition">   <xs:annotation>     <xs:documentation>This element is used to define the Reduced Horizontal Position. The coordinates given in Geographical Coordinates may come in variety of means. </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="state" type="xs:string"/>     <xs:attribute name="oID" type="xs:string"/>     <xs:attribute name="purpose" type="purposeType"/>     <xs:attribute name="setupID" type="xs:IDREF"/>     <xs:attribute name="date" type="xs:date"/>     <xs:attribute name="equipmentUsed" type="equipmentType"/>     <xs:attribute name="horizontalDatum" type="xs:string"/>     <xs:attribute name="horizontalAdjustment" type="xs:string"/>     <xs:attribute name="latitude" type="xs:string"/>     <xs:attribute name="longitude" type="xs:string"/>     <xs:attribute name="horizontalFix" type="xs:string"/>     <xs:attribute name="currencyDate" type="xs:string"/>     <xs:attribute name="localUncertainity" type="xs:double"/>     <xs:attribute name="class" type="xs:string"/>     <xs:attribute name="order" type="xs:string"/>     <xs:attribute name="positionalUncertainity" type="xs:double"/>   </xs:complexType> </xs:element>

attribute RedHorizontalPosition/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute RedHorizontalPosition/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute RedHorizontalPosition/@state

type	xs:string
properties	isRef  0
source	<xs:attribute name="state" type="xs:string"/>

attribute RedHorizontalPosition/@oID

type	xs:string
properties	isRef  0
source	<xs:attribute name="oID" type="xs:string"/>

attribute RedHorizontalPosition/@purpose

type	purposeType
properties	isRef  0
facets	enumeration  normal enumeration  check enumeration  backsight enumeration  foresight enumeration  traverse enumeration  sideshot enumeration  resection enumeration  levelLoop enumeration  digitalLevel enumeration  remoteElevation enumeration  recipricalObservation enumeration  topo enumeration  cutSheets enumeration  asbuilt
source	<xs:attribute name="purpose" type="purposeType"/>

attribute RedHorizontalPosition/@setupID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="setupID" type="xs:IDREF"/>

attribute RedHorizontalPosition/@date

type	xs:date
properties	isRef  0
source	<xs:attribute name="date" type="xs:date"/>

attribute RedHorizontalPosition/@equipmentUsed

type	equipmentType
properties	isRef  0
source	<xs:attribute name="equipmentUsed" type="equipmentType"/>

attribute RedHorizontalPosition/@horizontalDatum

type	xs:string
properties	isRef  0
source	<xs:attribute name="horizontalDatum" type="xs:string"/>

attribute RedHorizontalPosition/@horizontalAdjustment

type	xs:string
properties	isRef  0
source	<xs:attribute name="horizontalAdjustment" type="xs:string"/>

attribute RedHorizontalPosition/@latitude

type	xs:string
properties	isRef  0
source	<xs:attribute name="latitude" type="xs:string"/>

attribute RedHorizontalPosition/@longitude

type	xs:string
properties	isRef  0
source	<xs:attribute name="longitude" type="xs:string"/>

attribute RedHorizontalPosition/@horizontalFix

type	xs:string
properties	isRef  0
source	<xs:attribute name="horizontalFix" type="xs:string"/>

attribute RedHorizontalPosition/@currencyDate

type	xs:string
properties	isRef  0
source	<xs:attribute name="currencyDate" type="xs:string"/>

attribute RedHorizontalPosition/@localUncertainity

type	xs:double
properties	isRef  0
source	<xs:attribute name="localUncertainity" type="xs:double"/>

attribute RedHorizontalPosition/@class

type	xs:string
properties	isRef  0
source	<xs:attribute name="class" type="xs:string"/>

attribute RedHorizontalPosition/@order

type	xs:string
properties	isRef  0
source	<xs:attribute name="order" type="xs:string"/>

attribute RedHorizontalPosition/@positionalUncertainity

type	xs:double
properties	isRef  0
source	<xs:attribute name="positionalUncertainity" type="xs:double"/>
