element RetWall

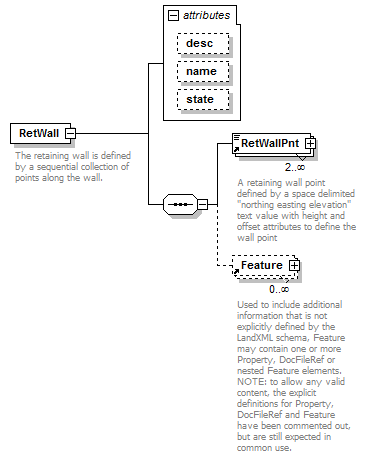

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	RetWallPnt Feature
used by	element  Breaklines
attributes	Name   Type   Use   Default   Fixed   annotation desc xs:string          name xs:string          state stateType
annotation	documentation The retaining wall is defined by a sequential collection of points along the wall. documentation Each point has a location (northing/easting/elevation),  height of wall and offset to the wall point.
source	<xs:element name="RetWall">   <xs:annotation>     <xs:documentation>The retaining wall is defined by a sequential collection of points along the wall.</xs:documentation>     <xs:documentation>Each point has a location (northing/easting/elevation),  height of wall and offset to the wall point.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="RetWallPnt" minOccurs="2" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute RetWall/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute RetWall/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute RetWall/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
