element StructFlow

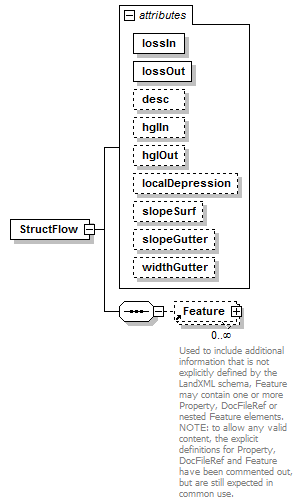

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Struct
attributes	Name   Type   Use   Default   Fixed   annotation lossIn xs:double required         lossOut xs:double required         desc xs:string          hglIn xs:double          hglOut xs:double          localDepression xs:double          slopeSurf xs:double          slopeGutter xs:double          widthGutter xs:double
source	<xs:element name="StructFlow">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="lossIn" type="xs:double" use="required"/>     <xs:attribute name="lossOut" type="xs:double" use="required"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="hglIn" type="xs:double"/>     <xs:attribute name="hglOut" type="xs:double"/>     <xs:attribute name="localDepression" type="xs:double"/>     <xs:attribute name="slopeSurf" type="xs:double"/>     <xs:attribute name="slopeGutter" type="xs:double"/>     <xs:attribute name="widthGutter" type="xs:double"/>   </xs:complexType> </xs:element>

attribute StructFlow/@lossIn

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="lossIn" type="xs:double" use="required"/>

attribute StructFlow/@lossOut

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="lossOut" type="xs:double" use="required"/>

attribute StructFlow/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute StructFlow/@hglIn

type	xs:double
properties	isRef  0
source	<xs:attribute name="hglIn" type="xs:double"/>

attribute StructFlow/@hglOut

type	xs:double
properties	isRef  0
source	<xs:attribute name="hglOut" type="xs:double"/>

attribute StructFlow/@localDepression

type	xs:double
properties	isRef  0
source	<xs:attribute name="localDepression" type="xs:double"/>

attribute StructFlow/@slopeSurf

type	xs:double
properties	isRef  0
source	<xs:attribute name="slopeSurf" type="xs:double"/>

attribute StructFlow/@slopeGutter

type	xs:double
properties	isRef  0
source	<xs:attribute name="slopeGutter" type="xs:double"/>

attribute StructFlow/@widthGutter

type	xs:double
properties	isRef  0
source	<xs:attribute name="widthGutter" type="xs:double"/>
