element Survey

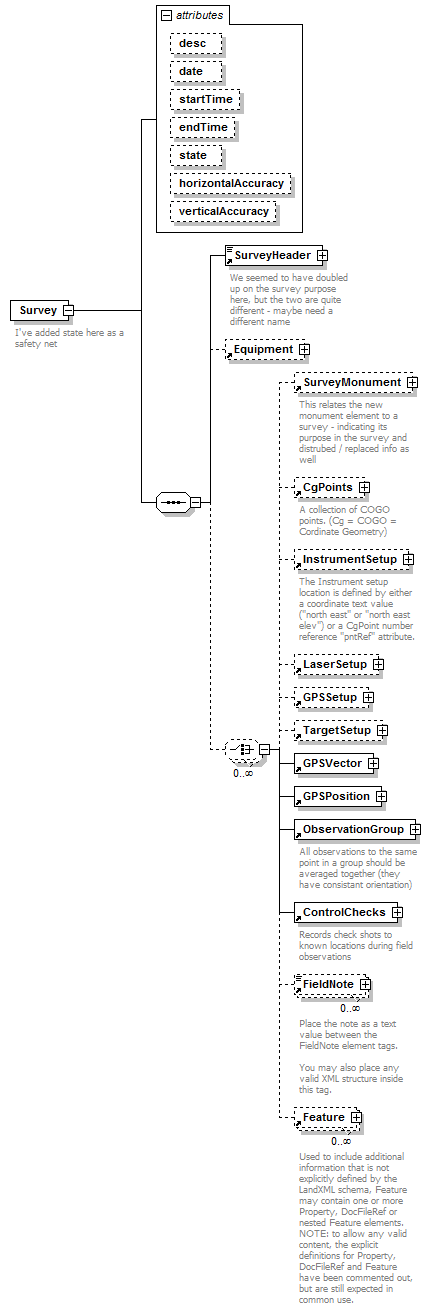

diagram LandXML-1.2Doc_p180.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children SurveyHeader Equipment SurveyMonument CgPoints InstrumentSetup LaserSetup GPSSetup TargetSetup GPSVector GPSPosition ObservationGroup ControlChecks FieldNote Feature
used by
element LandXML
attributes
Name  Type  Use  Default  Fixed  annotation
descxs:string
datexs:date
startTimexs:dateTime
endTimexs:dateTime
statestateType
horizontalAccuracyxs:string
verticalAccuracyxs:string
annotation
documentation
I've added state here as a safety net
source <xs:element name="Survey">

<xs:annotation>

<xs:documentation>I've added state here as a safety net</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="SurveyHeader"/>

<xs:element ref="Equipment" minOccurs="0"/>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="SurveyMonument" minOccurs="0"/>

<xs:element ref="CgPoints" minOccurs="0"/>

<xs:element ref="InstrumentSetup" minOccurs="0"/>

<xs:element ref="LaserSetup" minOccurs="0"/>

<xs:element ref="GPSSetup" minOccurs="0"/>

<xs:element ref="TargetSetup" minOccurs="0"/>

<xs:element ref="GPSVector"/>

<xs:element ref="GPSPosition"/>

<xs:element ref="ObservationGroup"/>

<xs:element ref="ControlChecks"/>

<xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

</xs:sequence>

<xs:attribute name="desc" type="xs:string"/>

<xs:attribute name="date" type="xs:date"/>

<xs:attribute name="startTime" type="xs:dateTime"/>

<xs:attribute name="endTime" type="xs:dateTime"/>

<xs:attribute name="state" type="stateType"/>

<xs:attribute name="horizontalAccuracy" type="xs:string"/>

<xs:attribute name="verticalAccuracy" type="xs:string"/>

</xs:complexType>
</xs:element>

attribute Survey/@desc
type xs:string
properties
isRef 0
source <xs:attribute name="desc" type="xs:string"/>

attribute Survey/@date
type xs:date
properties
isRef 0
source <xs:attribute name="date" type="xs:date"/>

attribute Survey/@startTime
type xs:dateTime
properties
isRef 0
source <xs:attribute name="startTime" type="xs:dateTime"/>

attribute Survey/@endTime
type xs:dateTime
properties
isRef 0
source <xs:attribute name="endTime" type="xs:dateTime"/>

attribute Survey/@state
type stateType
properties
isRef 0
facets
enumeration abandoned
enumeration destroyed
enumeration existing
enumeration proposed
source <xs:attribute name="state" type="stateType"/>

attribute Survey/@horizontalAccuracy
type xs:string
properties
isRef 0
source <xs:attribute name="horizontalAccuracy" type="xs:string"/>

attribute Survey/@verticalAccuracy
type xs:string
properties
isRef 0
source <xs:attribute name="verticalAccuracy" type="xs:string"/>
