element ZoneHinge

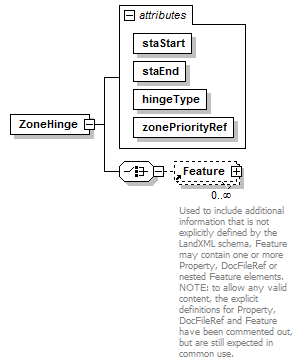

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Feature
used by	element  Zones
attributes	Name   Type   Use   Default   Fixed   annotation staStart station required         staEnd station required         hingeType zoneHingeType required         zonePriorityRef xs:int required
source	<xs:element name="ZoneHinge">   <xs:complexType>     <xs:choice>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="staStart" type="station" use="required"/>     <xs:attribute name="staEnd" type="station" use="required"/>     <xs:attribute name="hingeType" type="zoneHingeType" use="required"/>     <xs:attribute name="zonePriorityRef" type="xs:int" use="required"/>   </xs:complexType>   <!-- This element describes the non-center hinge point for superelevated roadways        The zonePriorityRef should contain the zone priority number (zone identifier) where the hinge point is located. The hingeType attribute identifies the left or right side of the zone to use as the hinge point. --> </xs:element>

attribute ZoneHinge/@staStart

type	station
properties	isRef  0 use  required
source	<xs:attribute name="staStart" type="station" use="required"/>

attribute ZoneHinge/@staEnd

type	station
properties	isRef  0 use  required
source	<xs:attribute name="staEnd" type="station" use="required"/>

attribute ZoneHinge/@hingeType

type	zoneHingeType
properties	isRef  0 use  required
facets	enumeration  center enumeration  left edge enumeration  right edge
source	<xs:attribute name="hingeType" type="zoneHingeType" use="required"/>

attribute ZoneHinge/@zonePriorityRef

type	xs:int
properties	isRef  0 use  required
source	<xs:attribute name="zonePriorityRef" type="xs:int" use="required"/>
