element Classification

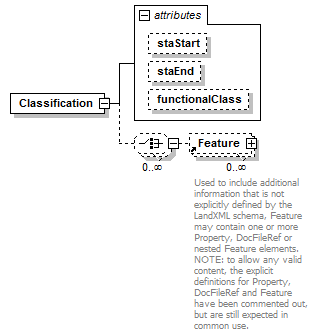

diagram LandXML-1.2Doc_p34.png
namespace http://www.landxml.org/schema/LandXML-1.2
properties
content complex
children Feature
used by
element Roadway
attributes
Name  Type  Use  Default  Fixed  annotation
staStartstation
staEndstation
functionalClassfunctionalClassType
source <xs:element name="Classification">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>

</xs:choice>

<xs:attribute name="staStart" type="station"/>

<xs:attribute name="staEnd" type="station"/>

<xs:attribute name="functionalClass" type="functionalClassType"/>

</xs:complexType>
</xs:element>

attribute Classification/@staStart
type station
properties
isRef 0
source <xs:attribute name="staStart" type="station"/>

attribute Classification/@staEnd
type station
properties
isRef 0
source <xs:attribute name="staEnd" type="station"/>

attribute Classification/@functionalClass
type functionalClassType
properties
isRef 0
facets
enumeration arterial
enumeration collector
enumeration local
source <xs:attribute name="functionalClass" type="functionalClassType"/>
