element Roadway

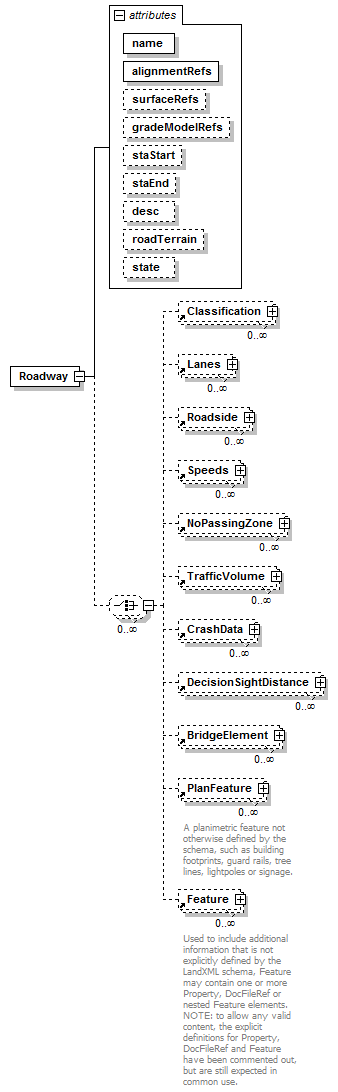

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	Classification Lanes Roadside Speeds NoPassingZone TrafficVolume CrashData DecisionSightDistance BridgeElement PlanFeature Feature
used by	element  Roadways
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         alignmentRefs alignmentNameRefs required         surfaceRefs surfaceNameRefs          gradeModelRefs gradeModelNameRefs          staStart station          staEnd station          desc xs:string          roadTerrain roadTerrainType          state stateType
source	<xs:element name="Roadway">   <xs:complexType>     <xs:choice minOccurs="0" maxOccurs="unbounded">       <xs:element ref="Classification" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Lanes" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Roadside" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Speeds" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="NoPassingZone" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="TrafficVolume" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="CrashData" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="DecisionSightDistance" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="BridgeElement" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="PlanFeature" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:choice>     <xs:attribute name="name" type="xs:string" use="required"/>     <xs:attribute name="alignmentRefs" type="alignmentNameRefs" use="required"/>     <xs:attribute name="surfaceRefs" type="surfaceNameRefs"/>     <xs:attribute name="gradeModelRefs" type="gradeModelNameRefs"/>     <xs:attribute name="staStart" type="station"/>     <xs:attribute name="staEnd" type="station"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="roadTerrain" type="roadTerrainType"/>     <xs:attribute name="state" type="stateType"/>   </xs:complexType> </xs:element>

attribute Roadway/@name

type	xs:string
properties	isRef  0 use  required
source	<xs:attribute name="name" type="xs:string" use="required"/>

attribute Roadway/@alignmentRefs

type	alignmentNameRefs
properties	isRef  0 use  required
source	<xs:attribute name="alignmentRefs" type="alignmentNameRefs" use="required"/>

attribute Roadway/@surfaceRefs

type	surfaceNameRefs
properties	isRef  0
source	<xs:attribute name="surfaceRefs" type="surfaceNameRefs"/>

attribute Roadway/@gradeModelRefs

type	gradeModelNameRefs
properties	isRef  0
source	<xs:attribute name="gradeModelRefs" type="gradeModelNameRefs"/>

attribute Roadway/@staStart

type	station
properties	isRef  0
source	<xs:attribute name="staStart" type="station"/>

attribute Roadway/@staEnd

type	station
properties	isRef  0
source	<xs:attribute name="staEnd" type="station"/>

attribute Roadway/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute Roadway/@roadTerrain

type	roadTerrainType
properties	isRef  0
facets	enumeration  flat enumeration  rolling enumeration  mountainous
source	<xs:attribute name="roadTerrain" type="roadTerrainType"/>

attribute Roadway/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>
