element CrossSect

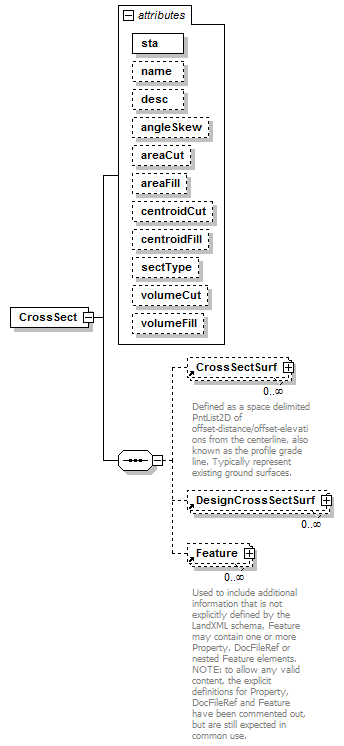

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	CrossSectSurf DesignCrossSectSurf Feature
used by	element  CrossSects
attributes	Name   Type   Use   Default   Fixed   annotation sta xs:double required         name xs:string          desc xs:string          angleSkew angle          areaCut crossSectSurfaceArea          areaFill crossSectSurfaceArea          centroidCut xs:double          centroidFill xs:double          sectType xs:string          volumeCut crossSectSurfaceVolume          volumeFill crossSectSurfaceVolume
source	<xs:element name="CrossSect">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="CrossSectSurf" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="DesignCrossSectSurf" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="sta" type="xs:double" use="required"/>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="angleSkew" type="angle"/>     <xs:attribute name="areaCut" type="crossSectSurfaceArea"/>     <xs:attribute name="areaFill" type="crossSectSurfaceArea"/>     <xs:attribute name="centroidCut" type="xs:double"/>     <xs:attribute name="centroidFill" type="xs:double"/>     <xs:attribute name="sectType" type="xs:string"/>     <xs:attribute name="volumeCut" type="crossSectSurfaceVolume"/>     <xs:attribute name="volumeFill" type="crossSectSurfaceVolume"/>   </xs:complexType> </xs:element>

attribute CrossSect/@sta

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="sta" type="xs:double" use="required"/>

attribute CrossSect/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute CrossSect/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute CrossSect/@angleSkew

type	angle
properties	isRef  0
source	<xs:attribute name="angleSkew" type="angle"/>

attribute CrossSect/@areaCut

type	crossSectSurfaceArea
properties	isRef  0
source	<xs:attribute name="areaCut" type="crossSectSurfaceArea"/>

attribute CrossSect/@areaFill

type	crossSectSurfaceArea
properties	isRef  0
source	<xs:attribute name="areaFill" type="crossSectSurfaceArea"/>

attribute CrossSect/@centroidCut

type	xs:double
properties	isRef  0
source	<xs:attribute name="centroidCut" type="xs:double"/>

attribute CrossSect/@centroidFill

type	xs:double
properties	isRef  0
source	<xs:attribute name="centroidFill" type="xs:double"/>

attribute CrossSect/@sectType

type	xs:string
properties	isRef  0
source	<xs:attribute name="sectType" type="xs:string"/>

attribute CrossSect/@volumeCut

type	crossSectSurfaceVolume
properties	isRef  0
source	<xs:attribute name="volumeCut" type="crossSectSurfaceVolume"/>

attribute CrossSect/@volumeFill

type	crossSectSurfaceVolume
properties	isRef  0
source	<xs:attribute name="volumeFill" type="crossSectSurfaceVolume"/>
