element DesignCrossSectSurf

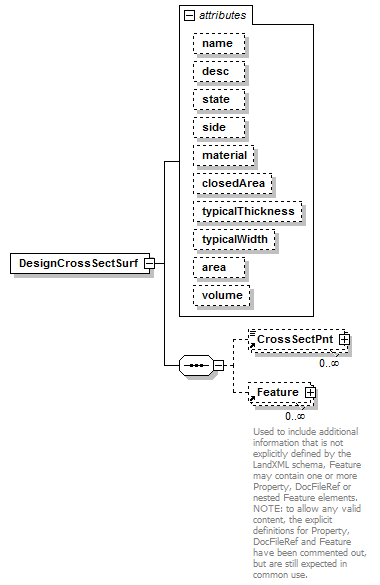

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	CrossSectPnt Feature
used by	element  CrossSect
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          desc xs:string          state stateType          side sideofRoadType          material xs:string          closedArea xs:boolean          typicalThickness xs:double          typicalWidth xs:double          area crossSectSurfaceArea          volume crossSectSurfaceVolume
source	<xs:element name="DesignCrossSectSurf">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="CrossSectPnt" minOccurs="0" maxOccurs="unbounded"/>       <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:attribute name="name" type="xs:string"/>     <xs:attribute name="desc" type="xs:string"/>     <xs:attribute name="state" type="stateType"/>     <xs:attribute name="side" type="sideofRoadType"/>     <xs:attribute name="material" type="xs:string"/>     <xs:attribute name="closedArea" type="xs:boolean"/>     <xs:attribute name="typicalThickness" type="xs:double"/>     <xs:attribute name="typicalWidth" type="xs:double"/>     <xs:attribute name="area" type="crossSectSurfaceArea"/>     <xs:attribute name="volume" type="crossSectSurfaceVolume"/>   </xs:complexType> </xs:element>

attribute DesignCrossSectSurf/@name

type	xs:string
properties	isRef  0
source	<xs:attribute name="name" type="xs:string"/>

attribute DesignCrossSectSurf/@desc

type	xs:string
properties	isRef  0
source	<xs:attribute name="desc" type="xs:string"/>

attribute DesignCrossSectSurf/@state

type	stateType
properties	isRef  0
facets	enumeration  abandoned enumeration  destroyed enumeration  existing enumeration  proposed
source	<xs:attribute name="state" type="stateType"/>

attribute DesignCrossSectSurf/@side

type	sideofRoadType
properties	isRef  0
facets	enumeration  right enumeration  left enumeration  both
source	<xs:attribute name="side" type="sideofRoadType"/>

attribute DesignCrossSectSurf/@material

type	xs:string
properties	isRef  0
source	<xs:attribute name="material" type="xs:string"/>

attribute DesignCrossSectSurf/@closedArea

type	xs:boolean
properties	isRef  0
source	<xs:attribute name="closedArea" type="xs:boolean"/>

attribute DesignCrossSectSurf/@typicalThickness

type	xs:double
properties	isRef  0
source	<xs:attribute name="typicalThickness" type="xs:double"/>

attribute DesignCrossSectSurf/@typicalWidth

type	xs:double
properties	isRef  0
source	<xs:attribute name="typicalWidth" type="xs:double"/>

attribute DesignCrossSectSurf/@area

type	crossSectSurfaceArea
properties	isRef  0
source	<xs:attribute name="area" type="crossSectSurfaceArea"/>

attribute DesignCrossSectSurf/@volume

type	crossSectSurfaceVolume
properties	isRef  0
source	<xs:attribute name="volume" type="crossSectSurfaceVolume"/>
