element CrossSectPnt

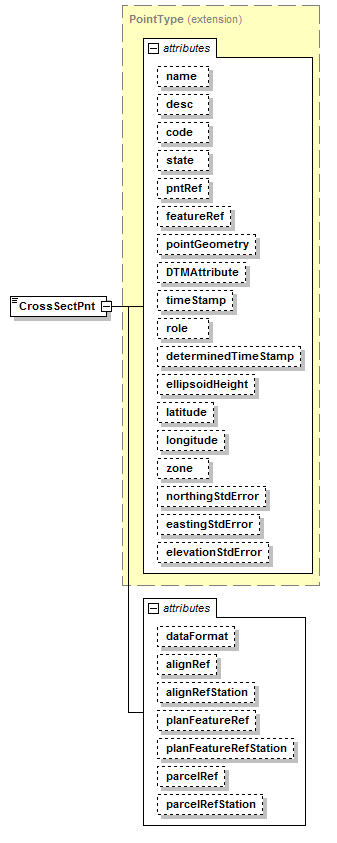

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
type	extension of PointType
properties	content  complex mixed  true
used by	element  DesignCrossSectSurf
facets	minLength  0 maxLength  3
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string          desc xs:string          code xs:string          state stateType          pntRef pointNameRef          featureRef featureNameRef optional         pointGeometry pointGeometryType          DTMAttribute DTMAttributeType          timeStamp xs:dateTime optional         role surveyRoleType optional         determinedTimeStamp xs:dateTime optional         ellipsoidHeight ellipsoidHeightType optional         latitude latLongAngle optional         longitude latLongAngle optional         zone xs:string optional         northingStdError xs:double optional         eastingStdError xs:double optional         elevationStdError xs:double optional         dataFormat dataFormatType    Offset Elevation      alignRef alignmentNameRef          alignRefStation station          planFeatureRef planFeatureNameRef          planFeatureRefStation station          parcelRef parcelNameRef          parcelRefStation station
source	<xs:element name="CrossSectPnt">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType mixed="true">     <xs:simpleContent>       <xs:extension base="PointType">         <xs:attribute name="dataFormat" type="dataFormatType" default="Offset Elevation"/>         <xs:attribute name="alignRef" type="alignmentNameRef"/>         <xs:attribute name="alignRefStation" type="station"/>         <xs:attribute name="planFeatureRef" type="planFeatureNameRef"/>         <xs:attribute name="planFeatureRefStation" type="station"/>         <xs:attribute name="parcelRef" type="parcelNameRef"/>         <xs:attribute name="parcelRefStation" type="station"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute CrossSectPnt/@dataFormat

type	dataFormatType
properties	isRef  0 default  Offset Elevation
facets	enumeration  Offset Elevation enumeration  Slope Distance
source	<xs:attribute name="dataFormat" type="dataFormatType" default="Offset Elevation"/>

attribute CrossSectPnt/@alignRef

type	alignmentNameRef
properties	isRef  0
source	<xs:attribute name="alignRef" type="alignmentNameRef"/>

attribute CrossSectPnt/@alignRefStation

type	station
properties	isRef  0
source	<xs:attribute name="alignRefStation" type="station"/>

attribute CrossSectPnt/@planFeatureRef

type	planFeatureNameRef
properties	isRef  0
source	<xs:attribute name="planFeatureRef" type="planFeatureNameRef"/>

attribute CrossSectPnt/@planFeatureRefStation

type	station
properties	isRef  0
source	<xs:attribute name="planFeatureRefStation" type="station"/>

attribute CrossSectPnt/@parcelRef

type	parcelNameRef
properties	isRef  0
source	<xs:attribute name="parcelRef" type="parcelNameRef"/>

attribute CrossSectPnt/@parcelRefStation

type	station
properties	isRef  0
source	<xs:attribute name="parcelRefStation" type="station"/>
