element GPSQCInfoLevel2

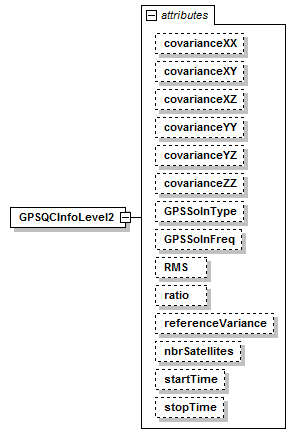

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
used by	elements  GPSPosition GPSVector
attributes	Name   Type   Use   Default   Fixed   annotation covarianceXX xs:double          covarianceXY xs:double          covarianceXZ xs:double          covarianceYY xs:double          covarianceYZ xs:double          covarianceZZ xs:double          GPSSolnType GPSSolutionTypeEnum          GPSSolnFreq GPSSolutionFrequencyEnum          RMS xs:double          ratio xs:double          referenceVariance xs:double          nbrSatellites xs:integer          startTime GPSTime          stopTime GPSTime
source	<xs:element name="GPSQCInfoLevel2">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:attribute name="covarianceXX" type="xs:double"/>     <xs:attribute name="covarianceXY" type="xs:double"/>     <xs:attribute name="covarianceXZ" type="xs:double"/>     <xs:attribute name="covarianceYY" type="xs:double"/>     <xs:attribute name="covarianceYZ" type="xs:double"/>     <xs:attribute name="covarianceZZ" type="xs:double"/>     <xs:attribute name="GPSSolnType" type="GPSSolutionTypeEnum"/>     <xs:attribute name="GPSSolnFreq" type="GPSSolutionFrequencyEnum"/>     <xs:attribute name="RMS" type="xs:double"/>     <xs:attribute name="ratio" type="xs:double"/>     <xs:attribute name="referenceVariance" type="xs:double"/>     <xs:attribute name="nbrSatellites" type="xs:integer"/>     <xs:attribute name="startTime" type="GPSTime"/>     <xs:attribute name="stopTime" type="GPSTime"/>     <!--  GPS Time = Nbr of GPS weeks * 604800 (seconds in a week) + seconds in GPS week  -->   </xs:complexType> </xs:element>

attribute GPSQCInfoLevel2/@covarianceXX

type	xs:double
properties	isRef  0
source	<xs:attribute name="covarianceXX" type="xs:double"/>

attribute GPSQCInfoLevel2/@covarianceXY

type	xs:double
properties	isRef  0
source	<xs:attribute name="covarianceXY" type="xs:double"/>

attribute GPSQCInfoLevel2/@covarianceXZ

type	xs:double
properties	isRef  0
source	<xs:attribute name="covarianceXZ" type="xs:double"/>

attribute GPSQCInfoLevel2/@covarianceYY

type	xs:double
properties	isRef  0
source	<xs:attribute name="covarianceYY" type="xs:double"/>

attribute GPSQCInfoLevel2/@covarianceYZ

type	xs:double
properties	isRef  0
source	<xs:attribute name="covarianceYZ" type="xs:double"/>

attribute GPSQCInfoLevel2/@covarianceZZ

type	xs:double
properties	isRef  0
source	<xs:attribute name="covarianceZZ" type="xs:double"/>

attribute GPSQCInfoLevel2/@GPSSolnType

type	GPSSolutionTypeEnum
properties	isRef  0
facets	enumeration  Unknown enumeration  Code enumeration  Float enumeration  Fixed enumeration  Network Float enumeration  Network Fixed enumeration  WAAS Float enumeration  WAAS Fixed
source	<xs:attribute name="GPSSolnType" type="GPSSolutionTypeEnum"/>

attribute GPSQCInfoLevel2/@GPSSolnFreq

type	GPSSolutionFrequencyEnum
properties	isRef  0
facets	enumeration  Unknown enumeration  L1 enumeration  L2 enumeration  L2 Squared enumeration  Wide Lane enumeration  Narrow Lane enumeration  Iono Free
source	<xs:attribute name="GPSSolnFreq" type="GPSSolutionFrequencyEnum"/>

attribute GPSQCInfoLevel2/@RMS

type	xs:double
properties	isRef  0
source	<xs:attribute name="RMS" type="xs:double"/>

attribute GPSQCInfoLevel2/@ratio

type	xs:double
properties	isRef  0
source	<xs:attribute name="ratio" type="xs:double"/>

attribute GPSQCInfoLevel2/@referenceVariance

type	xs:double
properties	isRef  0
source	<xs:attribute name="referenceVariance" type="xs:double"/>

attribute GPSQCInfoLevel2/@nbrSatellites

type	xs:integer
properties	isRef  0
source	<xs:attribute name="nbrSatellites" type="xs:integer"/>

attribute GPSQCInfoLevel2/@startTime

type	GPSTime
properties	isRef  0
source	<xs:attribute name="startTime" type="GPSTime"/>

attribute GPSQCInfoLevel2/@stopTime

type	GPSTime
properties	isRef  0
source	<xs:attribute name="stopTime" type="GPSTime"/>
