element GPSVector

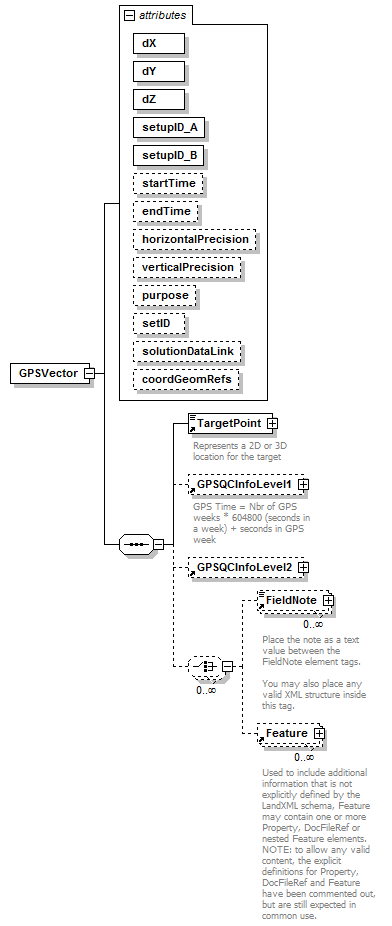

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	TargetPoint GPSQCInfoLevel1 GPSQCInfoLevel2 FieldNote Feature
used by	element  Survey
attributes	Name   Type   Use   Default   Fixed   annotation dX xs:double required         dY xs:double required         dZ xs:double required         setupID_A xs:IDREF required         setupID_B xs:IDREF required         startTime xs:dateTime optional         endTime xs:dateTime optional         horizontalPrecision xs:double optional         verticalPrecision xs:double optional         purpose purposeType          setID          solutionDataLink          coordGeomRefs coordGeomNameRefs
source	<xs:element name="GPSVector">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="TargetPoint"/>       <xs:element ref="GPSQCInfoLevel1" minOccurs="0"/>       <xs:element ref="GPSQCInfoLevel2" minOccurs="0"/>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="dX" type="xs:double" use="required"/>     <xs:attribute name="dY" type="xs:double" use="required"/>     <xs:attribute name="dZ" type="xs:double" use="required"/>     <xs:attribute name="setupID_A" type="xs:IDREF" use="required"/>     <xs:attribute name="setupID_B" type="xs:IDREF" use="required"/>     <xs:attribute name="startTime" type="xs:dateTime" use="optional"/>     <xs:attribute name="endTime" type="xs:dateTime" use="optional"/>     <xs:attribute name="horizontalPrecision" type="xs:double" use="optional"/>     <xs:attribute name="verticalPrecision" type="xs:double" use="optional"/>     <xs:attribute name="purpose" type="purposeType"/>     <xs:attribute name="setID"/>     <xs:attribute name="solutionDataLink"/>     <xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>     <!-- coordGeomRefs identifies one or more 'name' values that link to specific <Line>, <Curve>, <Spiral> or <IrregularLine> in a <CoordGeom> element. This allows linking an survey observation to specific <Parcel>.<CoordGeom> based geometry. -->   </xs:complexType> </xs:element>

attribute GPSVector/@dX

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="dX" type="xs:double" use="required"/>

attribute GPSVector/@dY

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="dY" type="xs:double" use="required"/>

attribute GPSVector/@dZ

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="dZ" type="xs:double" use="required"/>

attribute GPSVector/@setupID_A

type	xs:IDREF
properties	isRef  0 use  required
source	<xs:attribute name="setupID_A" type="xs:IDREF" use="required"/>

attribute GPSVector/@setupID_B

type	xs:IDREF
properties	isRef  0 use  required
source	<xs:attribute name="setupID_B" type="xs:IDREF" use="required"/>

attribute GPSVector/@startTime

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="startTime" type="xs:dateTime" use="optional"/>

attribute GPSVector/@endTime

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="endTime" type="xs:dateTime" use="optional"/>

attribute GPSVector/@horizontalPrecision

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="horizontalPrecision" type="xs:double" use="optional"/>

attribute GPSVector/@verticalPrecision

type	xs:double
properties	isRef  0 use  optional
source	<xs:attribute name="verticalPrecision" type="xs:double" use="optional"/>

attribute GPSVector/@purpose

type	purposeType
properties	isRef  0
facets	enumeration  normal enumeration  check enumeration  backsight enumeration  foresight enumeration  traverse enumeration  sideshot enumeration  resection enumeration  levelLoop enumeration  digitalLevel enumeration  remoteElevation enumeration  recipricalObservation enumeration  topo enumeration  cutSheets enumeration  asbuilt
source	<xs:attribute name="purpose" type="purposeType"/>

attribute GPSVector/@setID

properties	isRef  0
source	<xs:attribute name="setID"/>

attribute GPSVector/@solutionDataLink

properties	isRef  0
source	<xs:attribute name="solutionDataLink"/>

attribute GPSVector/@coordGeomRefs

type	coordGeomNameRefs
properties	isRef  0
source	<xs:attribute name="coordGeomRefs" type="coordGeomNameRefs"/>
