element GPSSetup

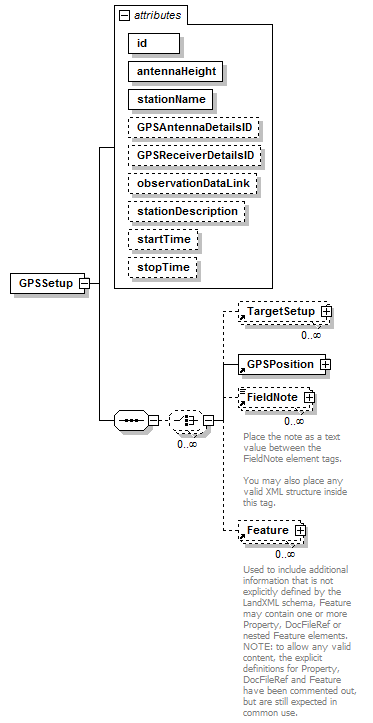

diagram
namespace	http://www.landxml.org/schema/LandXML-1.2
properties	content  complex
children	TargetSetup GPSPosition FieldNote Feature
used by	element  Survey
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID required         antennaHeight xs:double required         stationName required         GPSAntennaDetailsID xs:IDREF          GPSReceiverDetailsID xs:IDREF          observationDataLink          stationDescription          startTime GPSTime          stopTime GPSTime
source	<xs:element name="GPSSetup">   <xs:annotation>     <xs:documentation/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="TargetSetup" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="GPSPosition"/>         <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded"/>         <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="id" type="xs:ID" use="required"/>     <xs:attribute name="antennaHeight" type="xs:double" use="required"/>     <xs:attribute name="stationName" use="required"/>     <xs:attribute name="GPSAntennaDetailsID" type="xs:IDREF"/>     <xs:attribute name="GPSReceiverDetailsID" type="xs:IDREF"/>     <xs:attribute name="observationDataLink"/>     <xs:attribute name="stationDescription"/>     <xs:attribute name="startTime" type="GPSTime"/>     <xs:attribute name="stopTime" type="GPSTime"/>     <!--  GPS Time = Nbr of GPS weeks * 604800 (seconds in a week) + seconds in GPS week  -->   </xs:complexType> </xs:element>

attribute GPSSetup/@id

type	xs:ID
properties	isRef  0 use  required
source	<xs:attribute name="id" type="xs:ID" use="required"/>

attribute GPSSetup/@antennaHeight

type	xs:double
properties	isRef  0 use  required
source	<xs:attribute name="antennaHeight" type="xs:double" use="required"/>

attribute GPSSetup/@stationName

properties	isRef  0 use  required
source	<xs:attribute name="stationName" use="required"/>

attribute GPSSetup/@GPSAntennaDetailsID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="GPSAntennaDetailsID" type="xs:IDREF"/>

attribute GPSSetup/@GPSReceiverDetailsID

type	xs:IDREF
properties	isRef  0
source	<xs:attribute name="GPSReceiverDetailsID" type="xs:IDREF"/>

attribute GPSSetup/@observationDataLink

properties	isRef  0
source	<xs:attribute name="observationDataLink"/>

attribute GPSSetup/@stationDescription

properties	isRef  0
source	<xs:attribute name="stationDescription"/>

attribute GPSSetup/@startTime

type	GPSTime
properties	isRef  0
source	<xs:attribute name="startTime" type="GPSTime"/>

attribute GPSSetup/@stopTime

type	GPSTime
properties	isRef  0
source	<xs:attribute name="stopTime" type="GPSTime"/>
